Pneumatic Cylinders
Browse Pneumatic Cylinders by type
-
21 Series Cylinders
- ATEX group IIG/IID, category 2, zones 1 & 21.
- Bore sizes from 32mm to 80mm.
- ISO 15552 European standard.
- Optional Viton seals or stainless steel piston rod.
-

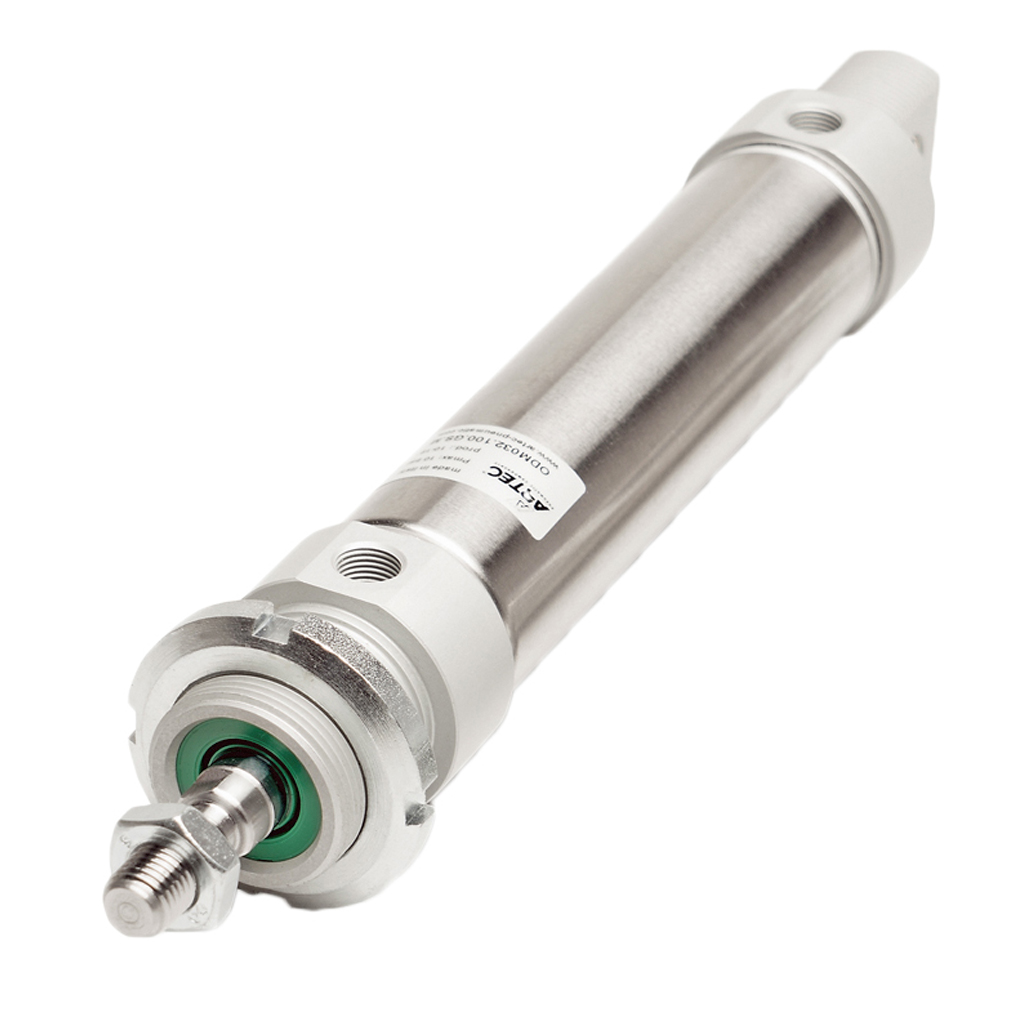

81 Series Cylinders
- Stainless steel 304 / optional 316.
- Bore sizes from 32mm to 125mm.
- ISO 15552 European standard.
- Optional Viton seals.
-

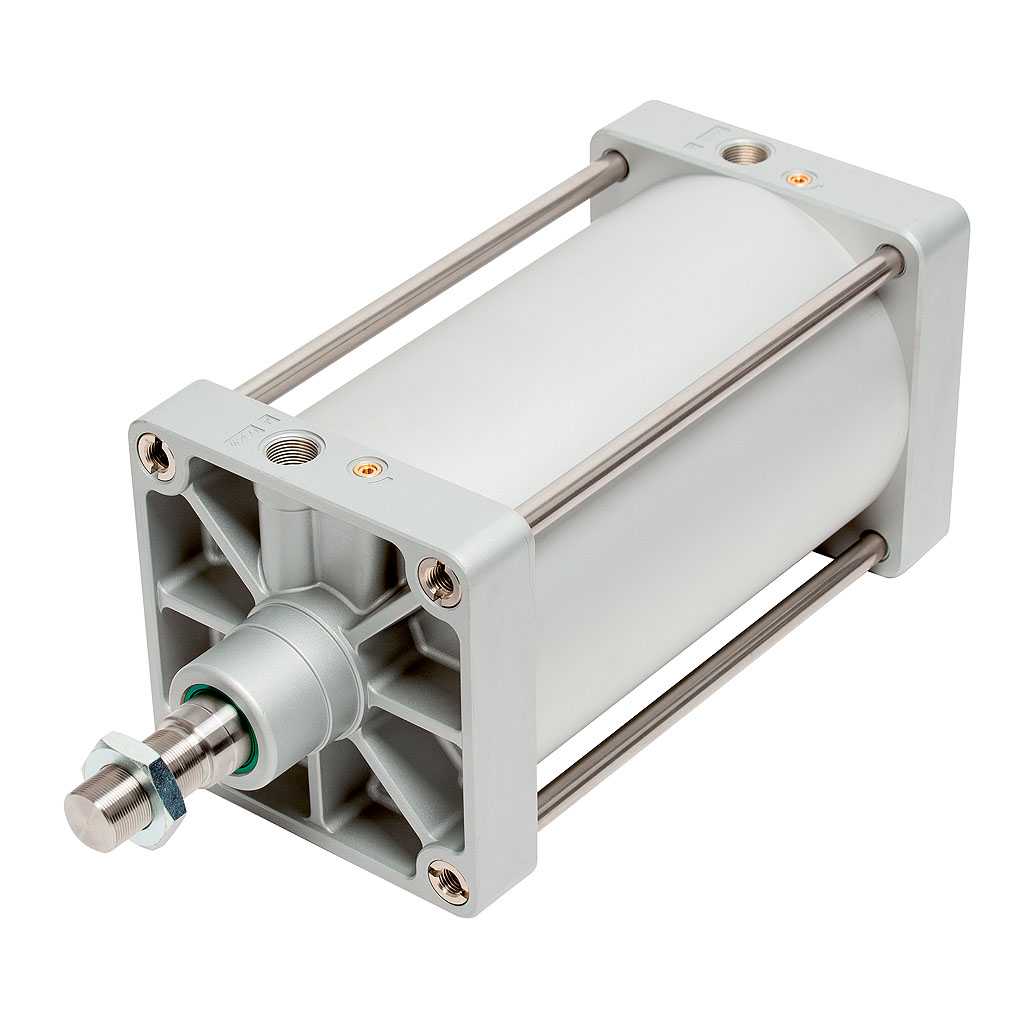

V Series Cylinders
- Bore sizes from 125mm to 320mm.
- ISO 15552 European standard.
- Optional Viton seals or stainless steel piston rod.
- Input pressure up to 10 bar.
-
39 Series Cylinders
- Bore sizes from 8mm to 63mm.
- Single acting or double acting.
- Single rod or through-rod design.
- Non-magnetic piston.
-

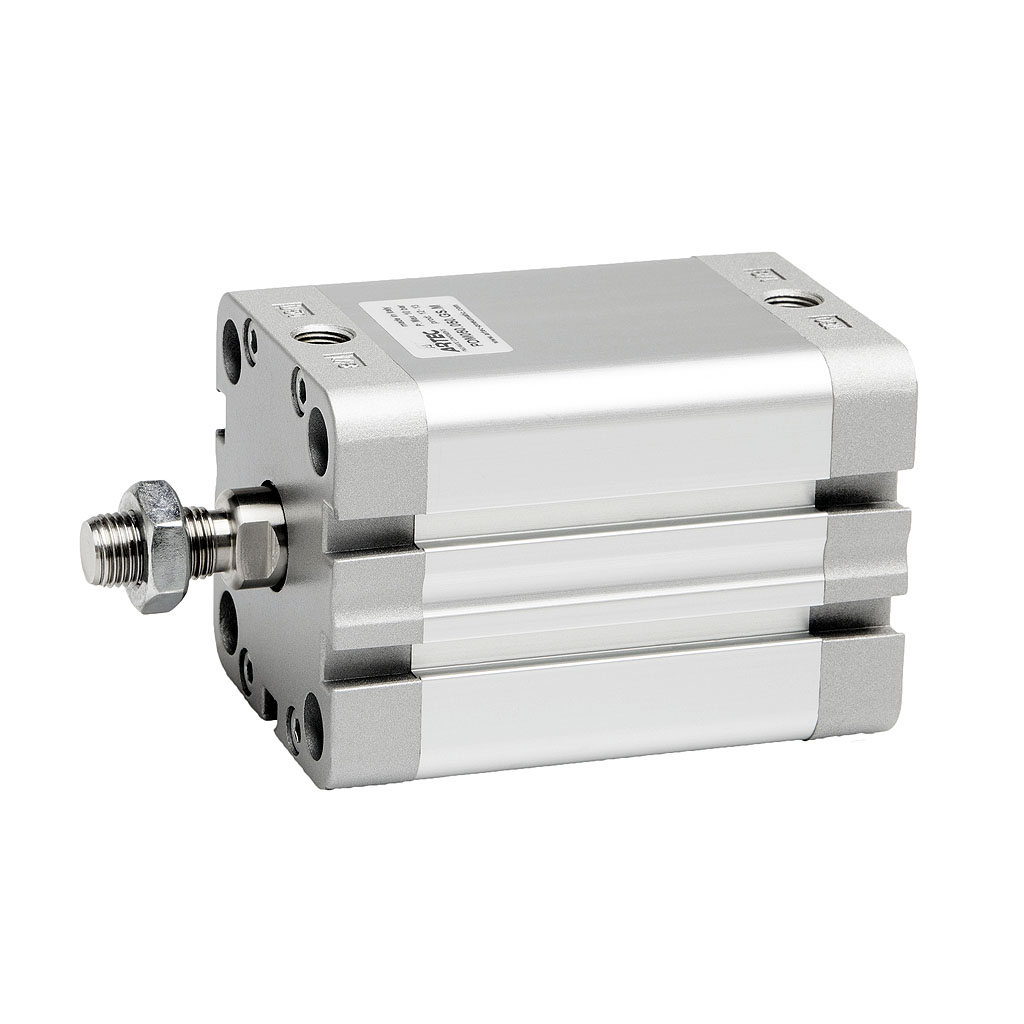

Compact Cylinders
- ATEX group IIG/IID, category 2, zones 1 & 21.
- Bore sizes from 12mm to 100mm.
- Single acting or double acting.
- Male or female threaded rod end.
-
CB Series Cylinders
- Bore sizes from 16mm to 100mm.
- Single acting or double acting.
- Single rod, through-rod, tandem, or back-to-back design.
- Optional Viton seals or stainless steel piston rod.
-
CNOMO Cylinders
- Bore sizes from 32mm to 320mm.
- CNOMO European standard.
- Optional Viton seals or stainless steel piston rod.
- Input pressure up to 10 bar.
-

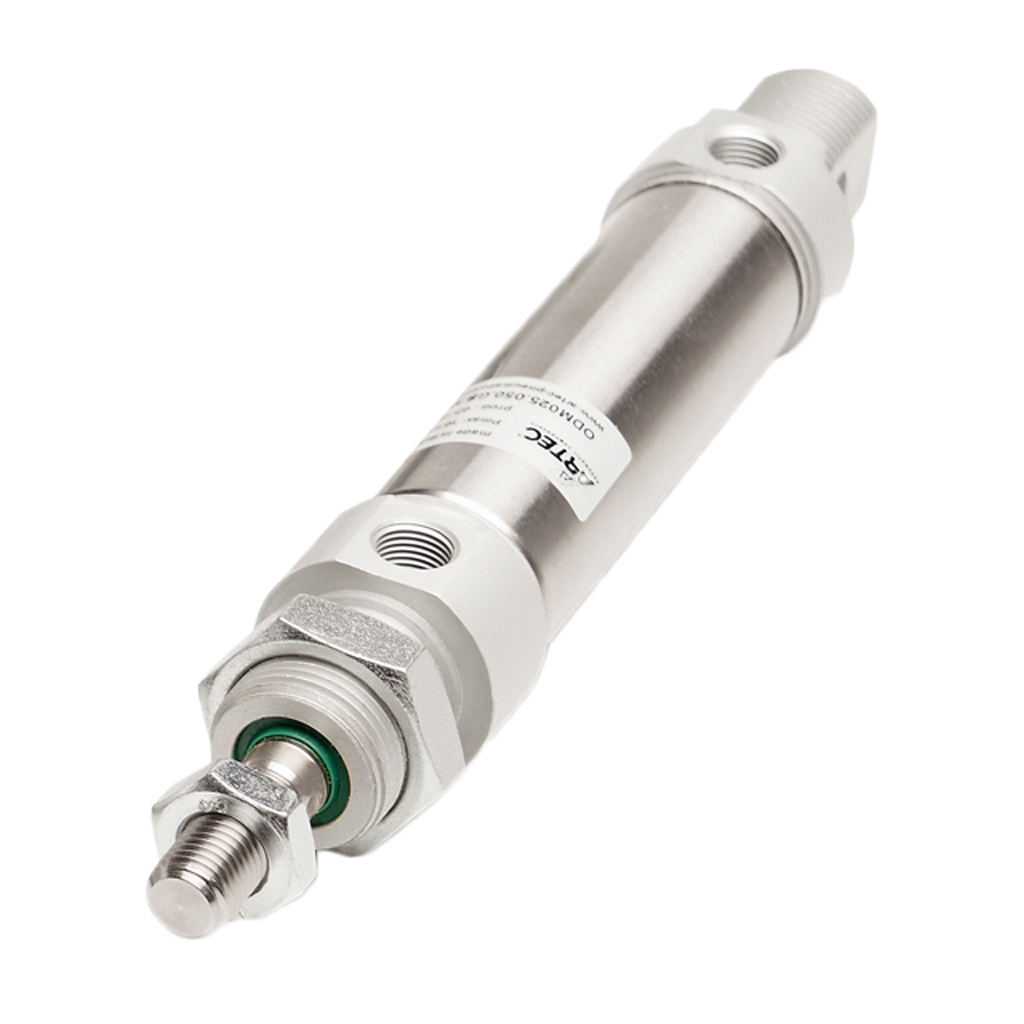

CETOP Cylinders
- ATEX group IIG/IID, category 2, zones 1 & 21.
- Bore sizes from 8mm to 25mm.
- ISO 6432 European standard.
- U or S type mounting option.
-
Brass Cylinders
- ATEX group IIG/IID, category 2, zones 1 & 21.
- Bore sizes from 3mm to 25mm.
- U or S type mounting option.
- Single acting or double acting.
Pneumatic cylinders are the most recognised component within the pneumatic product range and widely used within pneumatic control systems to deliver powerful linear force at fast operating speeds.
A vast array of cylinder choice, from tube profile, shaft material, bore size and stroke length are amongst some of the possibilities within the pneumatic cylinder product portfolio.
When selecting a pneumatic cylinder, the mounting of the cylinder and the connection of the coupled mass is critical to ensure the overall assembly offers stability, longevity, and is reliable. We offer a full range of mountings and rod end fixtures and sensors for each cylinder design.
Many pneumatic cylinders are manufactured to meet European specifications which define key cylinder dimensions and thread sizing to promote interchangeability with all other manufacturers.
ISO, VDMA, CETOP and CNOMO cylinders, as well as non-standard variants, are offered within this cylinder range.
