Tico 731 Series Counter
- Pulse / time counter, position indicator or tachometer.
- Dimensions (H) 24 x (W) 48 (D) 32 / 60mm.
- 8 digit LCD or 6 digit LED display, 7mm digit height.
- Volt free or 5V to 30V DC low voltage count input.
-
Tico 734 Series Counter
- Totalising or preset counter, time counter, position indicator or tachometer.
- Dimensions (H) 36 x (W) 72 x (D) 36mm.
- Up to 8 digit LCD display, 12mm digit height.
- Operating temperature 0°C to +55°C.
-
Tico 772, 773, 774 Multi-function Counter
- Totalising or preset counter, time counter, position indicator or tachometer with optional USB / RS232 interface.
- Dimensions (H) 48 x (W) 48 x (D) 120mm.
- 6 digit LCD or backlit white, green or red numbers.
- High count input frequency up to 60Khz.
-
Signo 721 Preset Counter
- Preset counter.
- Dimensions (H) 48 x (W) 48 x (D) 110mm.
- 6 digit LCD or backlit white / red display.
- High count input frequency up to 60Khz.
-
489 Adding Preset Time Counter
- Adding preset time counter - plug-in modular type.
- Dimensions (H) 75 x (W) 60mm - including frame.
- 5 digit (9999.9h) dual line display.
- Voltages 24V DC / 24 to 220V AC (50Hz / 60Hz).
-
486 - 487 Adding Preset Counter
- Adding preset counter - plug-in modular type.
- Dimensions (H) 75 x (W) 60mm - including frame.
- 3 or 5 digit dual line display.
- Voltages 12 to 220V DC / 24 to 230V AC.
-
446 - 447 Subtracting Preset Counter
- Subtracting preset counter - plug-in modular type.
- Dimensions (H) 75 x (W) 60mm - including frame.
- 3 or 5 digit single line display.
- Voltages 24V DC / 24, 115 and 230V AC.
-
478 Totalising Time Counter
- Totalising time counter - plug-in modular type.
- Dimensions (H) 50 x (W) 60mm - including frame.
- 6 or 7 digit display.
- Voltages 24V DC / 24 to 220V AC (50Hz / 60Hz).
-
464 - 468 Totalising Counter
- Totalising counter - plug-in modular type.
- Dimensions (H) 50 x (W) 60mm - including frame.
- 4, 6 or 8 digit display.
- Voltages 24V DC / 24, 115 and 230V AC.
-

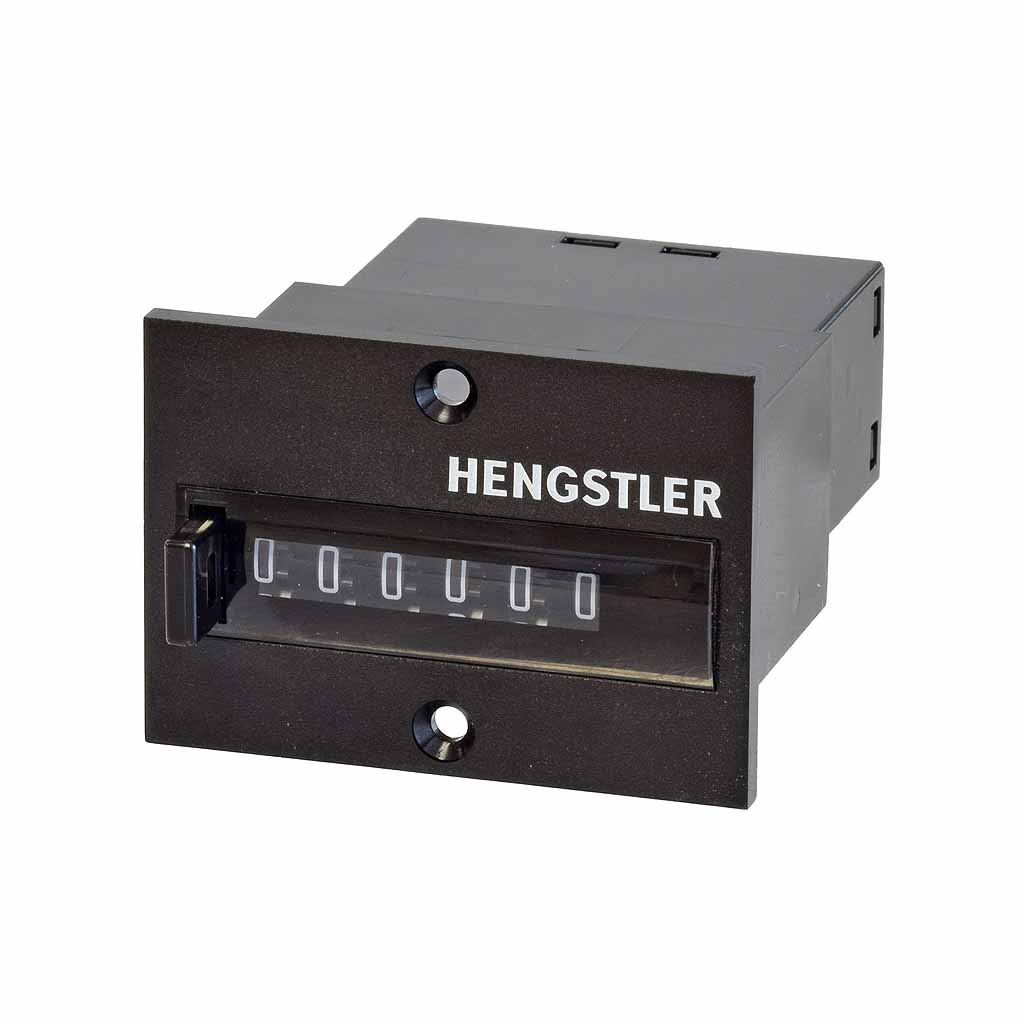

864 - 868 Totalising Counter
- Totalising counter - spring or screw attachment.
- Dimensions (W) 55 x (H) 28mm or (W) 56 x (H) 40mm.
- 6 or 8 digit display.
- Voltages 24V DC / 24, 115 and 230V AC.
-
886 - 887 Adding Preset Counter
- Adding preset counter - spring or screw attachment.
- Dimensions (W) 55 x (H) 53.2mm or (W) 60 x (H) 75mm.
- 3 or 5 digit dual line display.
- Voltages 24V DC or 230V AC.
-
Colibri 490 Totalising Counter
- Contactless counting - magnet or iron (Fe) parts.
- Dimensions (H) 20.2 x (W) 27 x (D) 25mm.
- 6 or 7 digit display.
- Direct mount or optional attachment plates.
-
634 - 635 Mini Totalising Counter
- Miniature size.
- Four mounting options including panel or PCB mount.
- 6 or 7 digit display.
- Voltages 5, 12, 24V DC / 24, 115, 230V AC.
-
633 Mini Totalising Time Counter
- Miniature size & low power consumption.
- Three mounting options including panel or PCB mount.
- 6 digit (99999.9h AC) or 7 digit (99999.99h DC) display.
- Voltages 5, 12, 24V DC / 24, 115, 220V AC (50Hz / 60Hz).
-
636 Totalising Time Counter
- Miniature size, highly visible display.
- Dimensions (W) 54.1 x (H) 31.8 x (D) 43.8 mm.
- 7 digit (99999.99h) display.
- Voltages 5 to 30V DC.
-
891 Totalising Time Counter
- Miniature size, highly visible display.
- Dimensions (W) 48 x (H) 24 x (D) 42mm without bezel.
- DIN-rail or panel mount with up to six optional fitting frames.
- 7 digit (99999.99h) display.
-
633 DIN-Rail Totalising Time Counter
- Miniature size & low power consumption.
- Dimensions (W) 25.5 x (H) 68.5 x (D) 28mm.
- Quick clip-on DIN-rail mounting.
- 7 digit (99999.99h) display.
-
635 DIN-Rail Totalising Counter
- Miniature size.
- Dimensions (W) 25.5 x (H) 68.5 x (D) 28mm.
- Quick clip-on DIN-rail mounting.
- 6 or 7 digit display.
-
101 - 309 Totalising Revolution or Stroke Counter
- Miniature size.
- 4 or 5 digit display, 4.2mm digit height.
- Surface mount, flush mount or without housing.
- Transmission ratio 1:1 or 1:10.
-
125 Totalising Revolution or Stroke Counter
- Totalising counter - button reset.
- 4 or 5 digit display, 4mm digit height.
- Transmission ratio 1:1 or 1:10.
- 4mm diameter single shaft.
-
150 Totalising Revolution, Length or Stroke Counter
- Totalising counter - button reset.
- 6 digit display, 4mm digit height.
- Transmission ratio 1:1, 1:2 or 1:10.
- 999999 or 99999.9 m/dm.
-
110 - 312 Totalising Revolution, Length or Stroke Counter
- Totalising counter - key reset only.
- 7 digit display, 8mm digit height.
- Transmission ratio 1:1, 1:2, 1:5 or 1:10.
- 9999999 or 999999.9 m/dm
-
225 Totalising Revolution, Length or Stroke Counter
- Totalising counter - safety button reset.
- 6 digit display, 6.5mm digit height.
- Transmission ratio 1:1, 1:5, 1:10 or 1:50.
- 999999, 99999.9 m/dm or 9999.9 m/cm.
-
250 Preset Revolution, Length or Stroke Counter
- Preset counter - safety button reset.
- Single pole changeover relay contact
- 5 digit display, 6.5mm digit height.
- Transmission ratio 1:1, 2:1 or 1:5.
Timers, counters and process control components convert incoming signals to a display readout. They can be used as a straightforward process display or signal other devices to control an event upon reaching a preset value.
Timed events are measured using time counters. Timed events are displayed on a mechanical figure wheel or a timing hand or can be viewed on an LCD.
Programmable time formats include hours, minutes and seconds; they can increment or decrement to a preset or totalise without a preset function.
Counters register pulsed input signals and translate them to a digital readout. Totalising counters accumulate a count value in one direction only (adding); they are generally non-scaleable and do not signal other devices. Preset counters come with at least one output, providing a signal to other devices on reaching a preset value.
Preset counters, in most cases, are bi-directional (adding and subtracting) and programmable that feature scaling where incoming pulses are multiplied to represent a comparison between the sensing device, measured material or speed, and the display readout.
Several counter types are included within this range, some with and some without a preset function.
Counters can be mechanical without power, electrically powered, or can be self-powered by a lithium battery.
This section includes mechanical, electrical and electronic timers or counters, process indicators, rate meters, revolution counters, stroke counters and length measurement devices.
