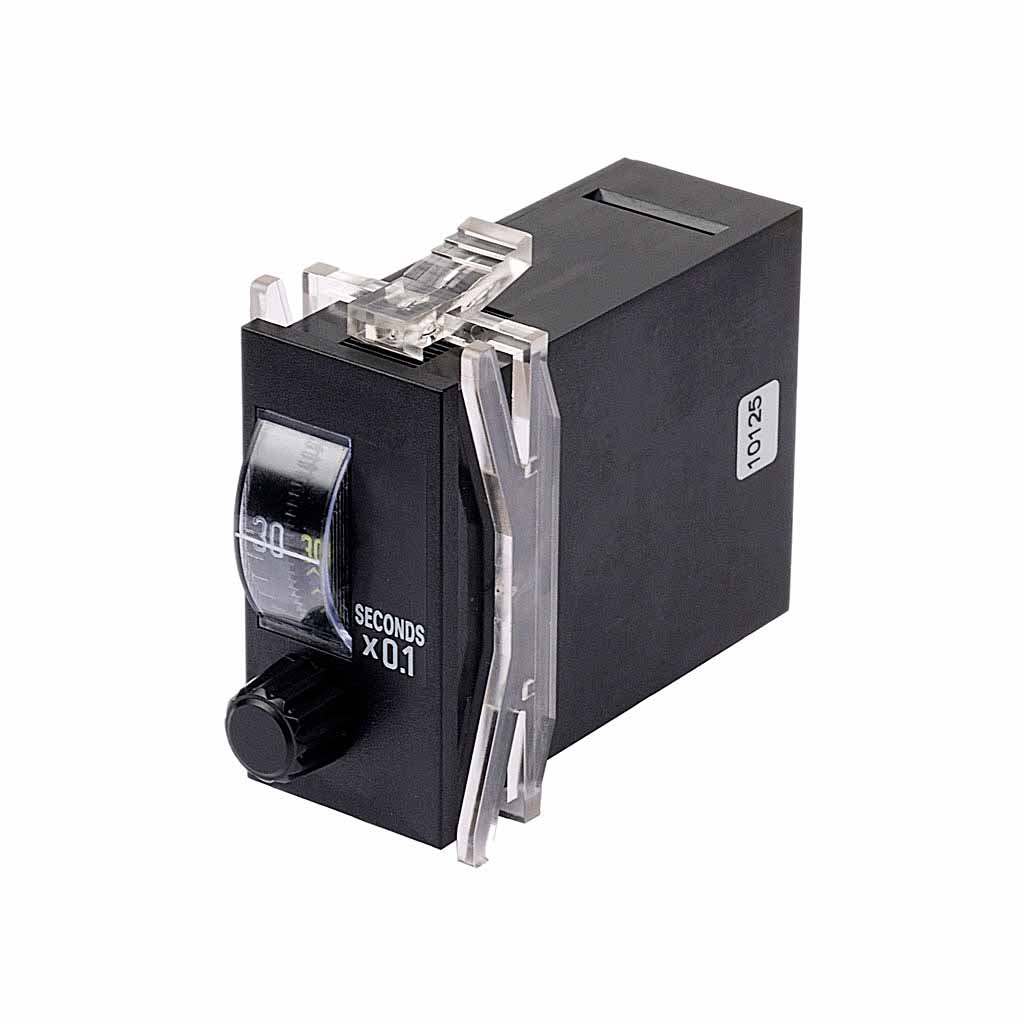

The PT pneumatic timer is a vertical surface mount timing device used mainly within the oil industry. It is a reliable, robust, proven product that operates from -30°C to +70°C.

Spring and diaphragm technology achieves timing. The principle of operation is atmospheric pressure is used to control the timing cycle; therefore, pressure fluctuations to the timing control port will not affect timing.

A multi-purpose valve offers three connection possibilities: ON delay timing, OFF delay timing, and a diverter valve function. Timing options vary from 0.1 to 1 second to 6 to 60 minutes; two timing sequences are possible.

  • Type PT31 - Pilot pressure is continuously applied to the control port to start timing. On reaching the preselected time, the directional valve switches over. Removing the pilot pressure to the control port resets the timer and the directional valve to a spring condition.
  • Type PT41 - Pilot pressure of at least 100ms in duration shifts the directional valve away from its spring condition. On the removal of the pilot pressure, the timing sequence begins. The directional valve returns to its spring condition on time-out.

PT41 pneumatic timers are unique; they are the only timers where timing commences upon completely removing compressed air from the control port. They are often used to delay the exhaust of a system upon air failure.

Setting the preset time is achieved by adjusting a large rotary knob on the front of the pneumatic timer. Connections are via 1/8 NPT threaded ports to the rear of the timer.

Find operating instructions here.


Pneumatic Timer QY007 1.5MB

Part Numbers Show…

PT31A | PT31B | PT31C | PT31D | PT31E | PT31K | PT31F | PT31H | PT31I | PT41A | PT41B | PT41C | PT41D | PT41E | PT41K | PT41F | PT41H | PT41I
